    Re: SE screen : DO NOT overtighten the knobs !!!
    Reply #10 on: June 30, 2022, 01:48:37 am
    June 30, 2022, 01:48:37 am
    I bought a pack of these at the local home improvement store. Among other names, they're called serrated belleville washers. Been running them on my 2015 now for a couple of months, and unlike before when the knobs would loosen on their own accord, the knobs are staying tight.



  • Offline Ben   fr

    • Versys Pro  ‐    110
    • ***
    • Topic Author
    • #11

    Offline Ben

    • Versys Pro
    • ***
    • Topic Author
    • Posts: 110
    • Bike: 2020SE V1K
    • City / Town: N/E of France
    • Country: fr
    Re: SE screen : DO NOT overtighten the knobs !!!
    Reply #11 on: July 01, 2022, 06:51:28 pm
    July 01, 2022, 06:51:28 pm
    *Originally Posted by Versys-V1K [+]
    I bought a pack of these at the local home improvement store. Among other names, they're called serrated belleville washers. Been running them on my 2015 now for a couple of months, and unlike before when the knobs would loosen on their own accord, the knobs are staying tight.




    Well, I had some difficulties to find out the name of this in french, but ok now  :012:

    I think I will give a try when I receive the new know.

    PS : now that i tend to tighten less, both loosen by themselves everyday  :157:

  • Offline Versys-V1K   us

    • Versys Pro  ‐    137
    • ***
      #12

    Offline Versys-V1K

    • Versys Pro
    • ***
    • Posts: 137
    • Bike: 2015 Versys 1000
    • City / Town: Minneapolis
    • Country: us
    Re: SE screen : DO NOT overtighten the knobs !!!
    Reply #12 on: July 02, 2022, 01:07:11 pm
    July 02, 2022, 01:07:11 pm
    *Originally Posted by Ben [+]
    Yes... exactly what I did  :006:

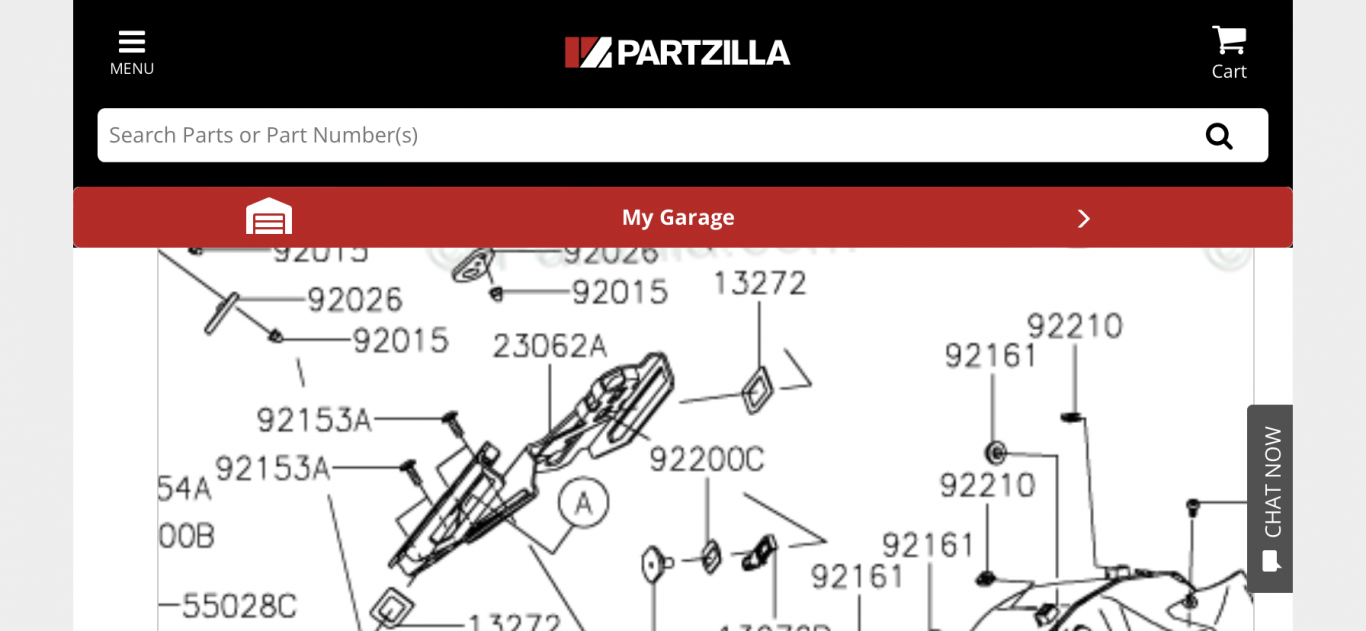

    Just a thought, but do you have both plastic washers (part numbers 13272 and 92210B) installed as shown below? Though the fastening system differs between your 2019 and my 2015, the same principle for clamping is used for each. When I bought my bike used it had an aftermarket windshield on it. I found later when I disassembled things, that one plastic washer of each type was missing. Those plastic washers if missing, may also play a part in things loosening up too.

    I have also found, that snugging and tightening the knobs incrementally going back and forth between knobs, until both are tightened fully, keep them from loosening easier too.



  • Offline Deepsea   us

    • Versys Member  ‐    46
    • **
      #13

    Offline Deepsea

    • Versys Member
    • **
    • Posts: 46
    • Bike: 2016 V1K
    • City / Town: Seacoast, NH
    • Country: us
    Re: SE screen : DO NOT overtighten the knobs !!!
    Reply #13 on: July 02, 2022, 01:43:46 pm
    July 02, 2022, 01:43:46 pm
    Loctite purple (222) is lower strength than blue.

    I second investugating the plastic washer. I had a similiar issue when I purchased my 2016 used. The PO had some work done requiring the upper fairing to be removed. Who ever did the work left out the rectangular plastic piece and had the order if the other hardware mixed up. I fabricated the rectangular pieces from a sheet of rubber, rearranged the other bits and my Puig snugs up nicely.

  • Offline Le ptit Quebec   fr

    • Versys Master  ‐    792
    • ****
      #14

    Offline Le ptit Quebec

    • Versys Master
    • ****
    • Posts: 792
    • Bike: Versys 1000
    • City / Town: Paris
    • Country: fr
    Re: SE screen : DO NOT overtighten the knobs !!!
    Reply #14 on: July 02, 2022, 04:42:14 pm
    July 02, 2022, 04:42:14 pm





    waggish
