    H7 LED Plug polarity
    on: September 03, 2022, 01:43:12 am
    September 03, 2022, 01:43:12 am

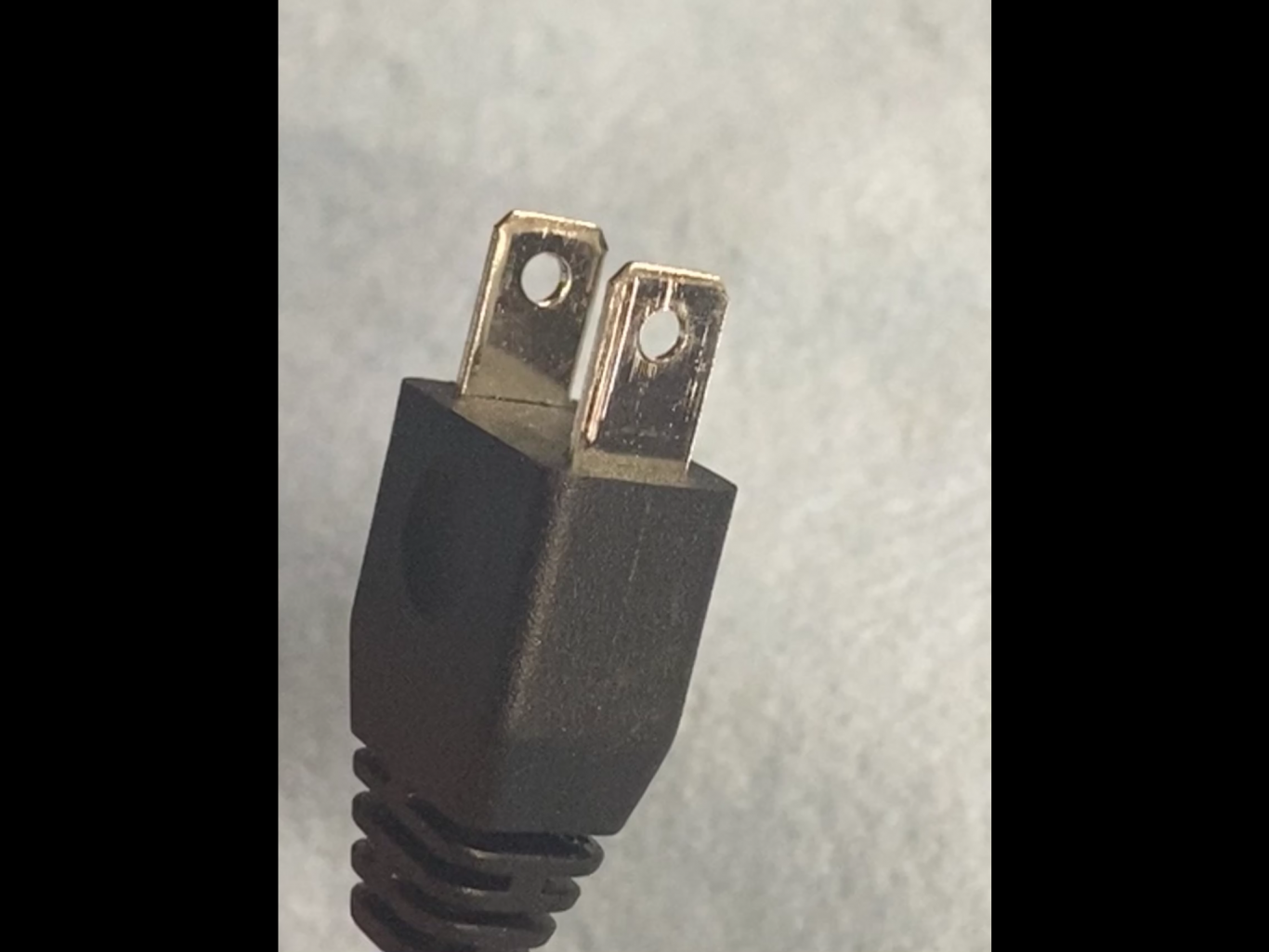

    I bought a set of H7 LEDís for my 2015 V1k and I have a question about the plug, attached to the bulbs. It is a 2 prong plug, that is reversible, meaning it can be rotated 180 degrees and plugged back in. The plug polarity isnít marked, so before I let the smoke out, is there anything else I should know?

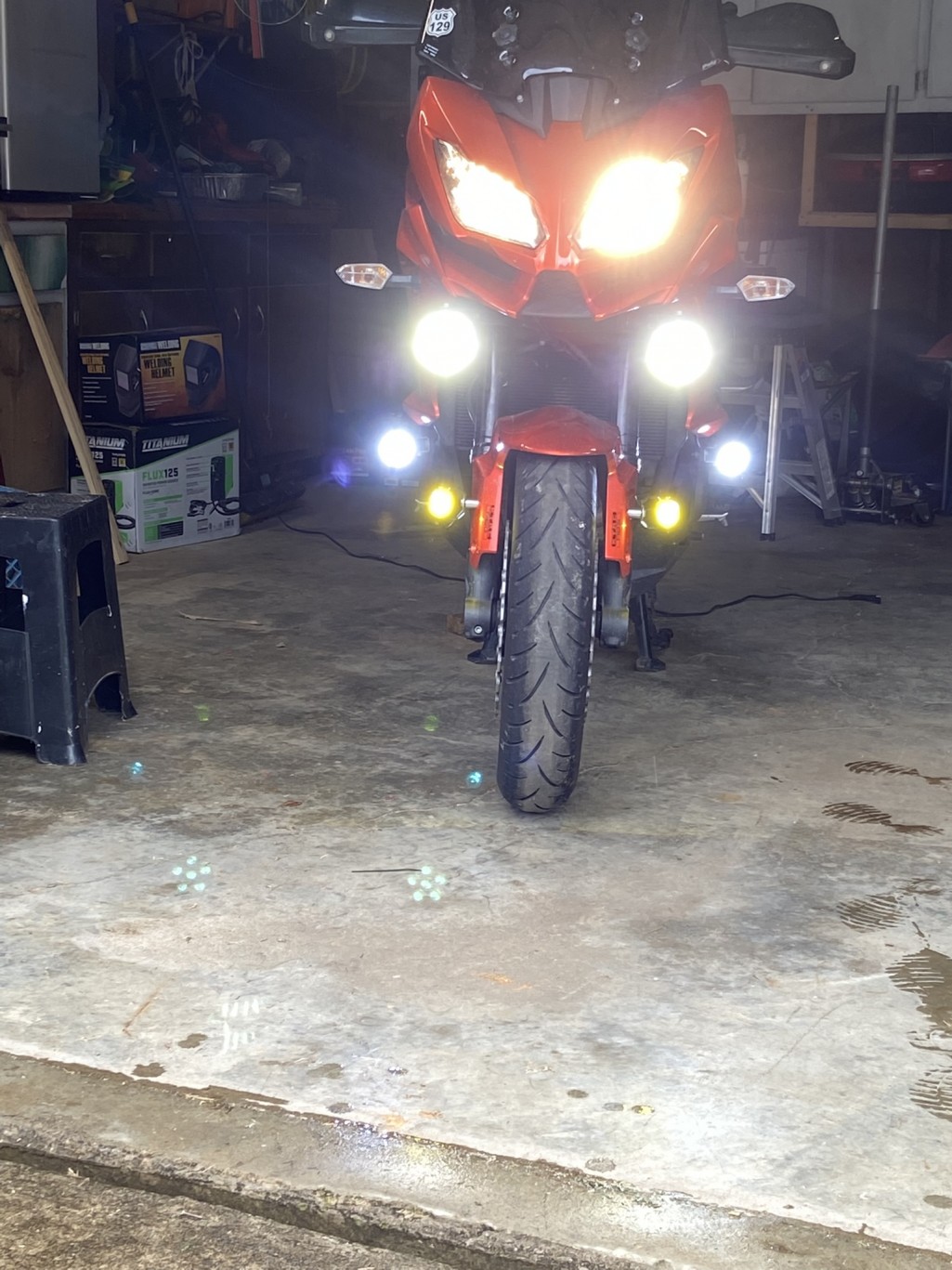

    I have LED driving lights, white fog lights, and yellow fork lights, but the factory headlights look dim in comparison.





  • Offline RaYzerman   ca

    • Versys Pro  ‐    375
    • ***
      #1

    Offline RaYzerman

    • Versys Pro
    • ***
    • Posts: 375
    • Bike: 2016 V1000 LT
    • City / Town: Millgrove, ON
    • Country: ca
    Re: H7 LED Plug polarity
    Reply #1 on: September 03, 2022, 02:02:34 am
    September 03, 2022, 02:02:34 am
    If the LED's are working, then you have the polarity correct.
    2016 V1000 LT,  '99 VFR 800, 2013 Fazer8 (project).

    Experience is a great teacher, she gives you the tests first and the lessons later.

  • Offline Nashcat   us

    • Versys Newbie  ‐    7
    • *
    • Topic Author
    • #2

    Offline Nashcat

    • Versys Newbie
    • *
    • Topic Author
    • Posts: 7
    • Bike: 2015 Versys1000 LT
    • City / Town: Middle TN
    • Country: us
    Re: H7 LED Plug polarity
    Reply #2 on: September 03, 2022, 03:46:08 am
    September 03, 2022, 03:46:08 am
    *Originally Posted by RaYzerman [+]
    If the LED's are working, then you have the polarity correct.

    Thanks. I was worried about reversed polarity, but I guess that since the emitter is a diode, it would block the forward voltage, if reversed.

  • Offline Nashcat   us

    • Versys Newbie  ‐    7
    • *
    • Topic Author
    • #3

    Offline Nashcat

    • Versys Newbie
    • *
    • Topic Author
    • Posts: 7
    • Bike: 2015 Versys1000 LT
    • City / Town: Middle TN
    • Country: us
    Re: H7 LED Plug polarity
    Reply #3 on: September 03, 2022, 08:15:12 pm
    September 03, 2022, 08:15:12 pm
    Well, I got them installed after a little wrestling with the bail. It spring didnít want to go around the wider bulb, without a bit of reshaping and some encouragement of large needle nose pliers. Now I have to wait until dark to get everything aimed and watch our for the lumen police.
